Introduction:

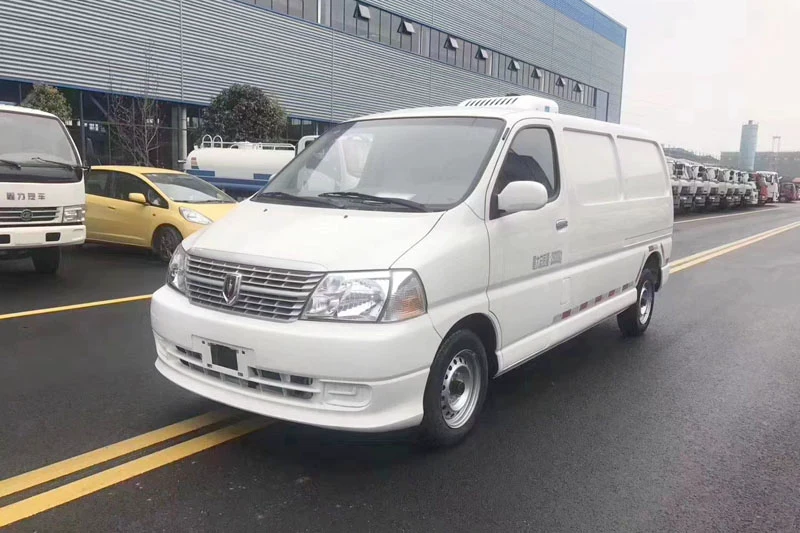

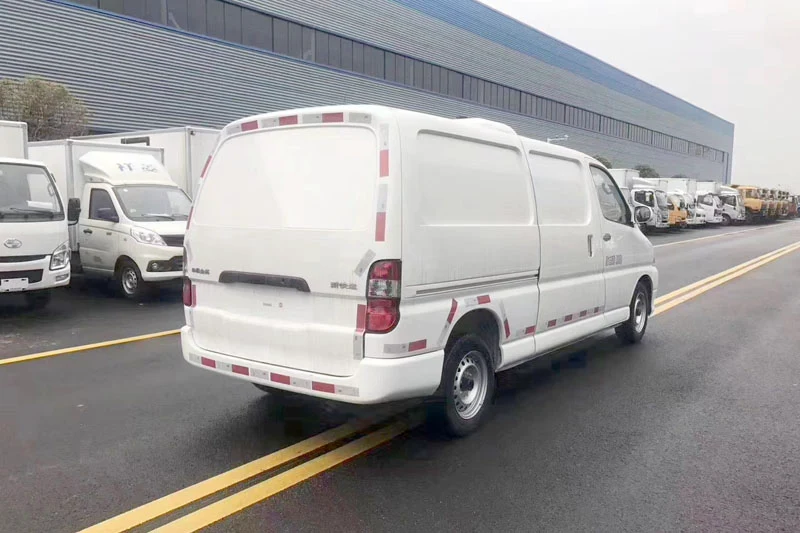

The Jinbei New Fast Delivery Van Refrigerated Truck is an advanced solution for temperature-sensitive transportation needs.
Ideal for food distribution, pharmaceutical transport, and various other applications, this vehicle combines durability with cutting-edge refrigeration technology to ensure optimal preservation of goods.
Chassis Configuration:
- Cabin: Features a Jinbei single-row cabin (optional double-row).
- Engine: Equipped with a new Changan 1TZS Euro VI emission standard gasoline engine (2.0L/136HP), ensuring compliance with stringent environmental regulations.
- Transmission: Five-speed manual gearbox for precise control.
- Comfort Features: Includes factory-installed air conditioning, electric windows, central locking, ABS, and power steering for a comfortable driving experience.
- Additional Details: For more comprehensive configuration details, please contact us directly.

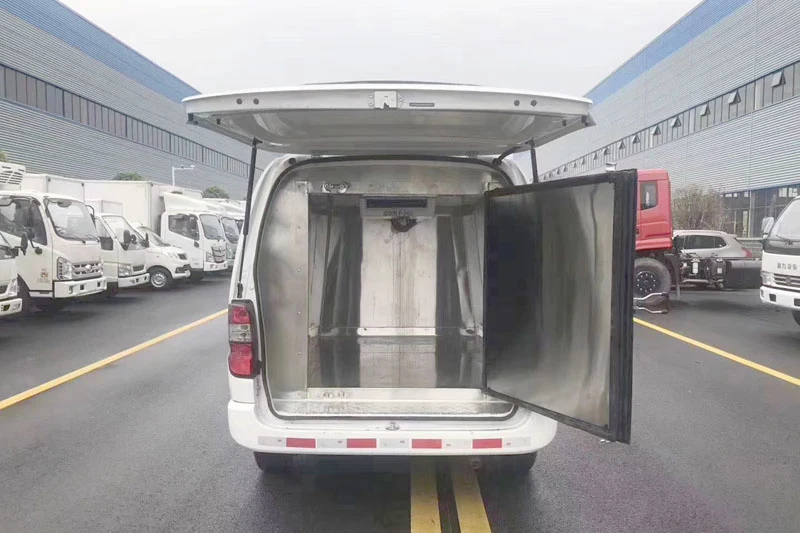

Body Configuration:
- Construction: The refrigerated body is designed with a fully sealed panel structure, utilizing 2.8mm high-quality matte fiberglass for superior structural strength.
- Insulation: The internal framework is reinforced with a bridge-breaking thermal insulation treatment, significantly enhancing the overall body strength.
- Insulation Material: Fitted with high-density polyurethane foam, the sandwich-structured panels provide excellent thermal insulation.
- Interior Features: The floor is covered with anti-slip aluminum alloy patterned plates. The exterior includes galvanized stainless steel corner trims, aluminum edging, and a reinforced stainless steel rear door frame with heavy-duty hinges and locks.
- Lighting: Equipped with LED strip lights inside the cargo area for better visibility.
Refrigeration System:
- Temperature Control: Capable of reaching temperatures as low as -18°C, with real-time adjustment available from the cabin.
- Refrigeration Units: Options available for different brands of high-efficiency vehicle-mounted refrigeration units:
- Domestic Brands: Kaixue, Huatai, Hanxue, Kelly, Bingyang, Bingsen, Hanya, Songhan, Kaikong, Yide, etc.
- International Brands: Kingcold (USA), Carrier (USA), Denso (Japan), Hanya (Korea), Aitek, etc.
- Additional Information: For a full list of refrigeration unit options, please contact us directly.
Optional Configurations:
- Detachable Rail Meat Hook Refrigerated Truck: Designed for hanging meat transportation, this feature addresses weight issues related to hook trucks.
- Vaccine Refrigerated Truck: Compliant with national GSP certification requirements, includes features like five-side ventilation slots, temperature and humidity recording device with printing capability, positioning system, and dual-temperature unit.
- Fresh Fish Refrigerated Truck: Equipped with a water tank, top-spraying system, and oxygenation system, ideal for seafood transportation.
- Bottom Ventilation Slots: Enhances internal airflow for quicker cooling.
- Backup Power System: Allows refrigeration to continue operating using an external power source when the vehicle engine is off.
Conclusion:
The Jinbei New Fast Delivery Van Refrigerated Truck is the ultimate solution for diverse temperature-controlled transport needs.
With its robust build, advanced insulation, and flexible refrigeration options, it meets the highest standards for preserving perishable goods across various industries.
For more detailed information or to discuss your specific requirements, please contact us.
