Chassis Configuration

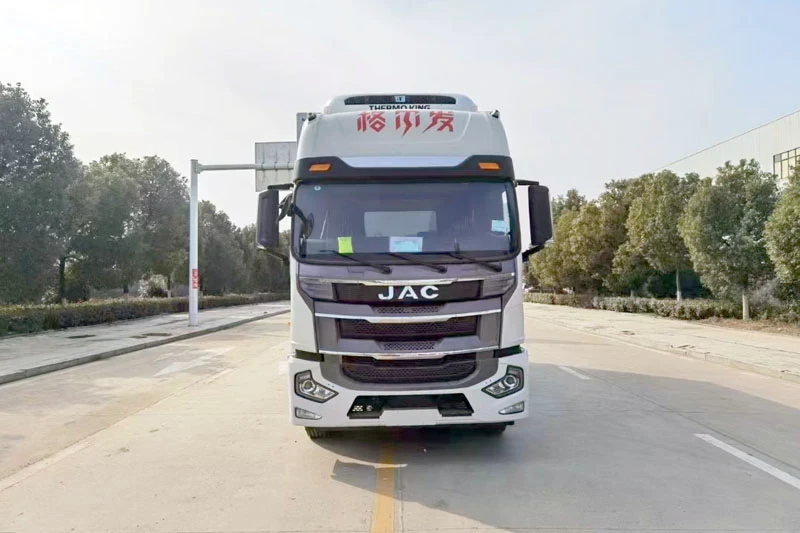

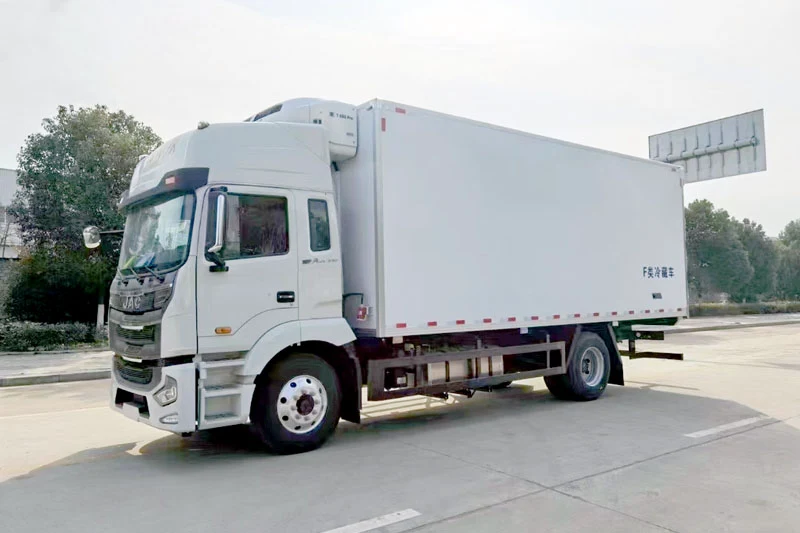

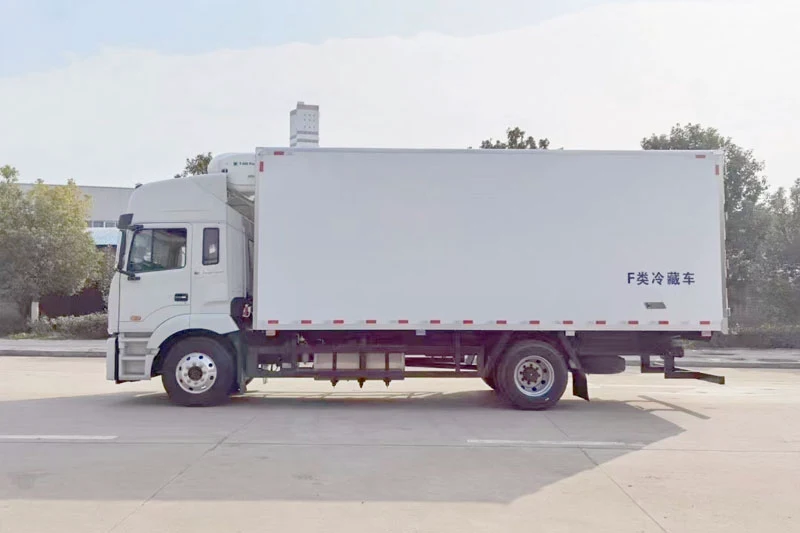

The 6.8-meter Jianghuai Geerfa Refrigerated Truck is designed to deliver superior performance and efficiency for transporting temperature-sensitive goods.
This model offers a combination of robust engineering and advanced features:
- Model: Jianghuai Geerfa A6LⅡ Semi-High Roof Cab.
- Engine:
- Brand: Cummins.
- Model: B4.5NS6B220.
- Power: 220 horsepower.
- Transmission: Equipped with the 8JS85TC gearbox for smooth and reliable shifting.
- Tires: Features 11R22.5 18PR tires, designed for durability and enhanced load-bearing capacity.
- Fuel Tank: 300-liter aluminum alloy fuel tank, ensuring extended range and reduced weight.
- Rear Axle: Lightweight 9-ton rear axle for improved vehicle efficiency and load distribution.
- Suspension:
- Front: Rubber pad suspension.
- Rear: Leaf spring suspension.
- Additional Features:
- Mirrors: Rod-type heated rearview mirrors for better visibility in all weather conditions.
- Telematics: 4G T-BOX for real-time tracking and vehicle diagnostics.
- Air Storage: Aluminum alloy air tanks for durability and weight reduction.
- Cab Support: Semi-floating cab support for enhanced driving comfort.
- Steering: Multi-function steering wheel for ease of control.
- Battery: 120A.H battery for reliable power supply.
- For more detailed specifications and additional options, please contact us directly.
Cargo Box Configuration
The refrigerated cargo box of the Jianghuai Geerfa is engineered to maintain optimal temperature conditions, ensuring the safe transport of perishable goods:
- Construction:
- Panel Material: The cargo box is built with a fully sealed panel structure using 2.8mm high-quality matte fiberglass, which provides balanced structural strength.
- Insulation: The internal framework is reinforced with bridge-breaking thermal insulation technology, significantly enhancing the box’s strength and insulation capabilities.
- Insulation Material: High-density polyurethane foam is used to fill the cargo box, creating a sandwich structure that offers exceptional thermal insulation.
- Interior Features:
- Flooring: The interior floor is equipped with anti-slip aluminum alloy checkered plates, ensuring safety and ease of maintenance.
- Lighting: LED lighting with a switch provides visibility and convenience inside the cargo area.
- Exterior Features:
- Reinforcement: The exterior includes galvanized stainless steel corner protectors and aluminum alloy edging to protect against damage.
- Rear Door: Heavy-duty stainless steel rear door frame with reinforced stainless steel hinges and locks for added security.
Refrigeration System
The Jianghuai Geerfa Refrigerated Truck is equipped with a high-performance refrigeration system designed to handle various temperature-sensitive goods:
- Temperature Range: Capable of achieving temperatures as low as -18°C, with real-time control available from the driver’s cabin.
- Refrigeration Units: The truck can be equipped with a range of high-efficiency refrigeration units, tailored to user requirements:
- Domestic Brands: Kaixue, Huatai, Hanxue, Kelly, Bingyang, Bingsen, Hanya, Songhan, Kaikeng, Yide, etc.
- Imported Brands: Carrier Transicold (USA), Carrier (USA), Denso (Japan), Hanya (Korea), Etec (Korea), etc.
- For more information on available refrigeration units and configurations, please contact us directly.
Optional Configurations
The Jianghuai Geerfa Refrigerated Truck offers various customizable options to meet specific transportation needs:
- Detachable Guide Rail Meat Hook Refrigerated Truck: Ideal for transporting hanging meat. The detachable guide rail system helps address weight limitations and registration issues associated with meat hook vehicles.
- Vaccine Refrigerated Truck: Meets national GSP certification requirements, including five-sided ventilation slots, temperature and humidity recorders with printing capabilities, a positioning system, and dual-temperature refrigeration units.
- Live Fish Refrigerated Truck: Includes additional features such as a water tank, top spraying system, and oxygenation system, specifically designed for seafood and live fish transportation.
- Bottom Ventilation Slots: Improves airflow within the cargo area for faster cooling and consistent temperature maintenance.
- Backup Power System: Allows the refrigeration system to operate using an external power source when the vehicle engine is not running, ensuring continuous cooling.
For further details on these options or to discuss specific requirements, please contact us directly.
