Introduction:

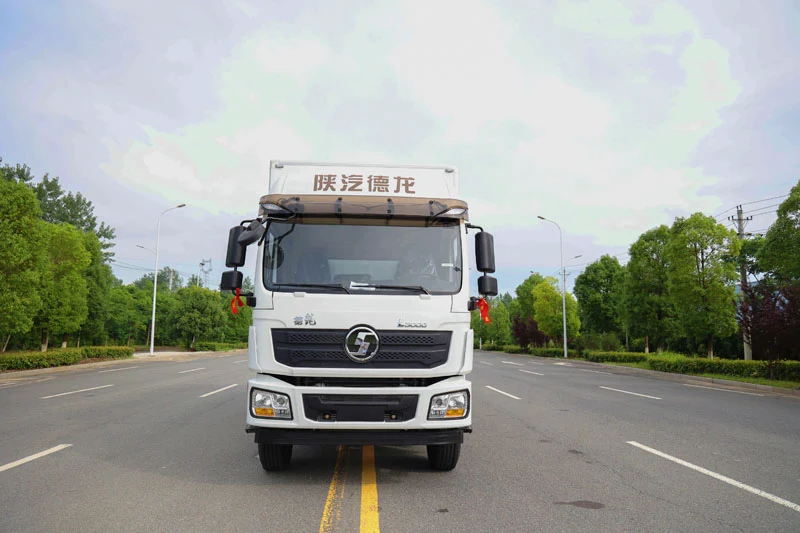

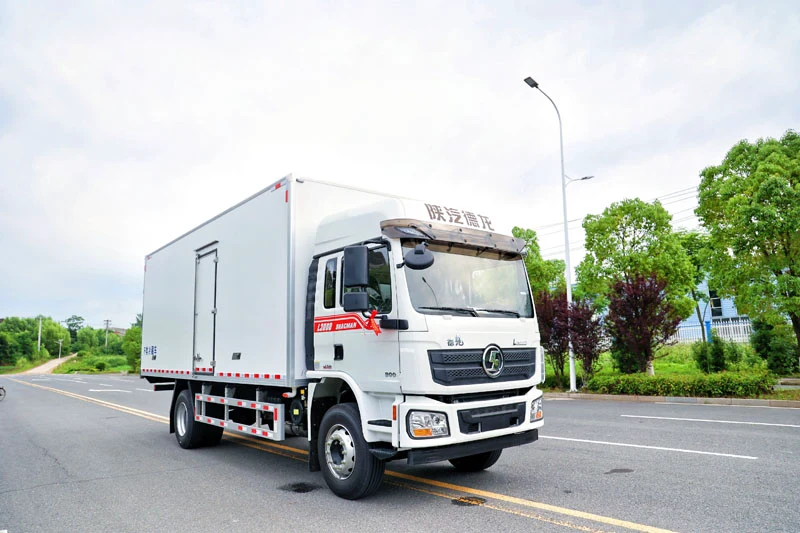

The 6.9m Shaanxi L3000 Refrigerated Truck is engineered to deliver superior performance and reliability for transporting temperature-sensitive goods.
Designed for applications such as food distribution, pharmaceutical transport, and more, this truck integrates advanced technology with robust construction to ensure optimal preservation of perishable items.
Chassis Configuration:

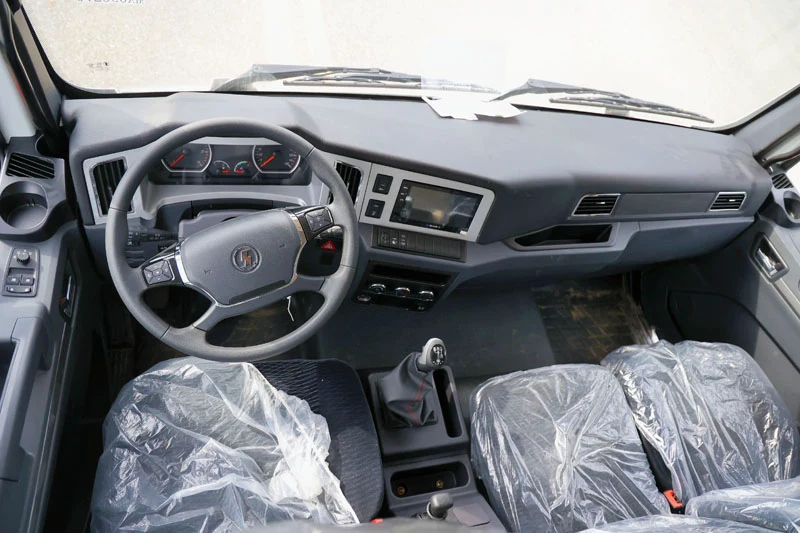

- Cabin: Features the Shaanxi Delong L3000 high-roof cabin (optional low-roof cabin), designed for driver comfort and functionality.
- Suspension: Equipped with four-point hydraulic suspension for a smooth and stable ride.
- Engine: Powered by a Yuchai 240HP Euro VI diesel engine, providing robust power and efficiency.
- Transmission: Fitted with a Fast eight-speed transmission system for seamless gear shifting.
- Tires: 275/80R22.5 tires for durability and improved load-bearing capacity.
- Additional Features:
- Tianxingjian intelligent version
- Multi-function steering wheel with cruise control
- Air suspension driver’s seat with a third passenger seat
- Electric air conditioning
- Electric windows
- Electrically heated side mirrors
- Central locking system with remote control
- Circumferential window curtains
- Electric tilting mechanism
- Daytime running lights
- ABS (Anti-lock Braking System)
- 400L fuel tank
- Wheelbase: 5000mm
For further detailed specifications, please contact us directly.

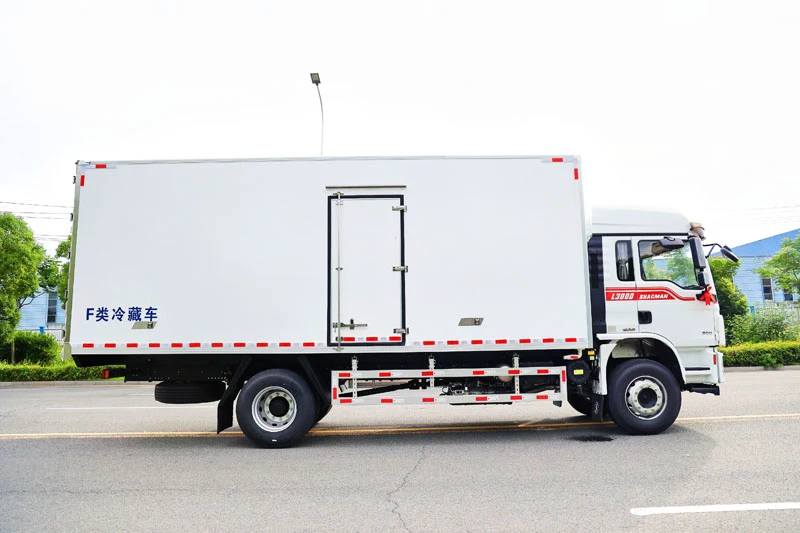

Body Configuration:
- Construction: The refrigerated body is built with a fully sealed panel structure made from 2.8mm high-quality matte fiberglass, providing balanced structural strength.
- Insulation: Features a bridge-breaking thermal insulation treatment for the internal framework, greatly enhancing the body’s overall strength and insulation performance.
- Insulation Material: Filled with high-density polyurethane foam, the body’s sandwich structure ensures exceptional thermal insulation.
- Interior Features:
- Anti-slip aluminum alloy patterned floor
- Galvanized stainless steel corner trims
- Aluminum alloy edging
- Stainless steel rear door frame with reinforced hinges and locks
- LED strip lighting inside the cargo area for improved visibility
Refrigeration System:
- Temperature Control: Capable of achieving temperatures as low as -18°C, with real-time adjustments available from the cabin.
- Refrigeration Units: Various high-efficiency vehicle-mounted refrigeration units are available, including options from:
- Domestic Brands: Kaixue, Huatai, Hanxue, Kelly, Bingyang, Bingsen, Hanya, Songhan, Kaikong, Yide, etc.
- International Brands: Kingcold (USA), Carrier (USA), Denso (Japan), Hanya (Korea), Aitek, etc.
- Additional Information: For a full list of refrigeration unit options, please contact us directly.
Optional Configurations:
- Detachable Rail Meat Hook Refrigerated Truck: Ideal for transporting hanging meat, this feature helps address weight-related registration issues.
- Vaccine Refrigerated Truck: Compliant with national GSP certification requirements, includes five-sided ventilation slots, a temperature and humidity recording device with printing capability, positioning system, and dual-temperature unit.
- Fresh Fish Refrigerated Truck: Includes a water tank, top-spraying system, and oxygenation system, specifically designed for seafood transportation.
- Bottom Ventilation Slots: Enhances internal airflow for faster cooling.
- Backup Power System: Allows the refrigeration system to continue operating using an external power source when the engine is off.
Conclusion:
The 6.9m Shaanxi L3000 Refrigerated Truck provides a reliable and efficient solution for various temperature-controlled transportation needs.
With its robust design, advanced insulation, and customizable refrigeration options, it ensures optimal preservation of perishable goods across multiple industries.
For more information or to discuss your specific needs, please contact us.
